PA-12006M Horizontal & Vertical Manual Chuck | Dual-Side Machining | EROWA ER-036345 Compatible
Dual-orientation machining solution: The PA-12006M Horizontal & Vertical Manual Chuck D100 features a multi-function base enabling both top and side machining operations. With 10,000N clamping force and Nippon Stainless Steel construction (57-60 HRC). Perfect replacement for EROWA ER-036345 with enhanced flexibility.
3. Product Description Details
Dual-Orientation Machining Innovation: Horizontal & Vertical Chuck for Complete Workpiece Access
The PA-12006M Horizontal & Vertical Manual Chuck D100 represents a breakthrough in machining flexibility, offering both standard horizontal and innovative vertical mounting orientations in a single unit. This versatile solution enables complete 5-side machining capability without workpiece repositioning, significantly reducing setup time and expanding processing possibilities while maintaining full EROWA ER-036345 compatibility.
Key Features & Benefits:
- •
🔄 Dual-Orientation Base: Unique design allows both horizontal (top) and vertical (side) mounting configurations for complete workpiece access
- •
⚡ 5-Side Machining Capability: Enables machining from top and four sides without repositioning, drastically reducing setup time and increasing productivity
- •
🔧 Full EROWA ER-036345 Compatibility: Maintains identical 10,000N clamping force and functional performance while offering revolutionary flexibility
- •
🛡️ Premium Construction: Complete unit made from Nippon Stainless Steel with 57-60 HRC hardness for maximum durability and corrosion resistance
- •
🎯 Precision Performance: Guarantees <0.002mm repeat accuracy in both orientations for critical machining applications
Technical Specifications:
- •
Model: PA-12006M Horizontal & Vertical Manual Chuck D100
- •

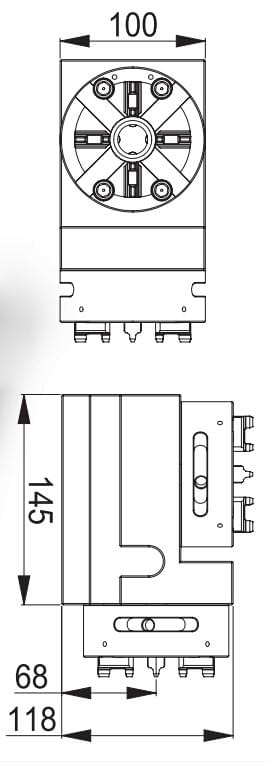

Overall Dimensions: 145 × 100 × 118 mm
- •
Clamping Force: 10,000 N
- •
Material: Nippon Stainless Steel (complete unit)
- •
Hardness: 57-60 HRC
- •
Mounting Orientations: Horizontal & Vertical
- •
Included: AL Plug ×1 PC, Stainless Steel Handle ×1 PC
Specialized Applications:
- •
5-side machining operations
- •
Complex multi-face workpiece processing
- •
Mold and die manufacturing with side features
- •
Prototype development with complex geometries
- •
Multi-operation machining without repositioning
- •
Specialized fixture and workholding applications
Advantage Comparison:
Feature | Standard Single-Orientation Chuck | PA-12006M Dual-Orientation Chuck |
|---|---|---|
Machining Access | Limited plane access | Complete 5-side capability |
Setup Efficiency | Multiple setups required | Single setup multiple operations |
Workpiece Handling | Frequent repositioning needed | Minimal handling required |
Process Flexibility | Limited orientation options | Dual-orientation versatility |
