Superior Performance & Direct EROWA Compatibility​

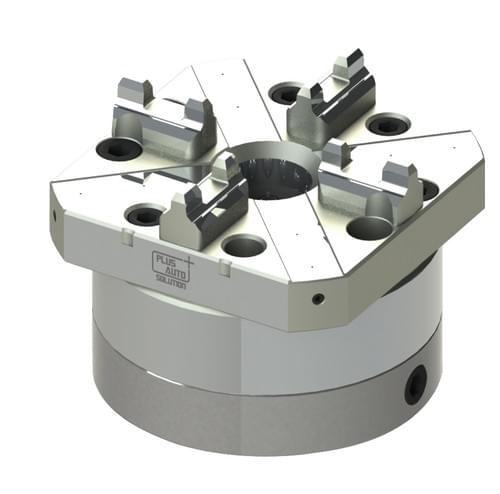

Our PA-80001H Square Pneumatic Chuck is engineered as a premium, high-performance alternative to the EROWA ER-007604 manual chuck. It offers seamless integration into existing EROWA-compatible tooling systems, providing a significant upgrade in automation, cleanliness, and reliability.

​Key Advantages:​​

• •

  ​🔄 Direct Plug-and-Play Replacement:​​ Perfectly compatible with systems designed for the EROWA ER-007604 NSF model, enabling instant automation upgrades without any system modifications.

• •

  ​🧼 Integrated 6 Bar Air Cleaning:​​ Flushes away chips and coolant automatically during operation. This critical feature ensures consistent clamping accuracy, prevents damage, and drastically reduces maintenance downtime compared to manual chucks.

• •

  ​💪 Robust Construction:​​ Machined from high-grade Nippon Stainless Steel and hardened to 57-60 HRC for maximum wear resistance and a dramatically longer service life in demanding workshop environments.

• •

  ​⚡ Automated Clamping:​​ Shift from manual operation to efficient pneumatic clamping. This improves workflow speed, enhances operator safety, and is ideal for high-mix, low-volume production cycles.

​Technical Specifications:​​

• •

  ​Model:​​ PA-80001H

• •

  ​Type:​​ Square Pneumatic Chuck

• •

  ​Clamping Force:​​ 6,000 N

• •

  ​Required Air Pressure:​​ 6 Bar (with air cleaning function)

• •

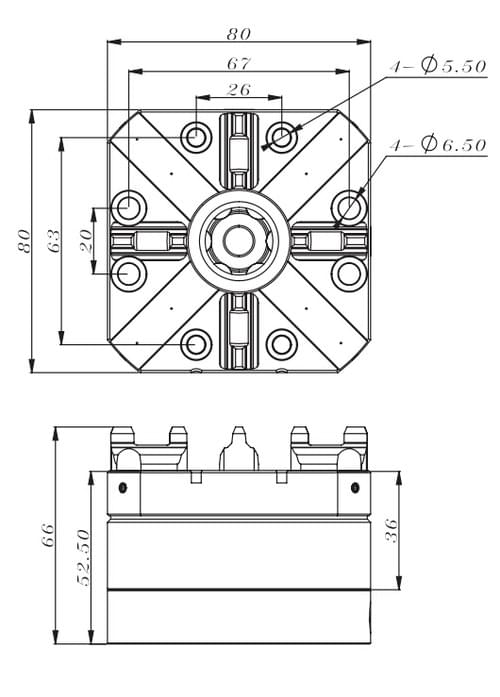

  ​Dimensions (LxWxH):​​ 80 x 80 x 66 mm

• •

  ​Material:​​ Nippon Stainless Steel

• •

  ​Hardness:​​ 57 - 60 HRC

​Applications:​​

Ideal for precision machining of electrodes, mold components, and delicate parts in industries such as:

• •

  EDM Electrode Fabrication

• •

  Precision Mold Manufacturing

• •

  Medical Device Machining

• •

  Aerospace Component Processing
