PA-80004H EDM Chuck with Connection Rod | 6000N Force | EROWA ER-007521 Compatible Design
Specialized EDM Solution: Chuck with Integrated Connection Rod for Perfect Concentricity

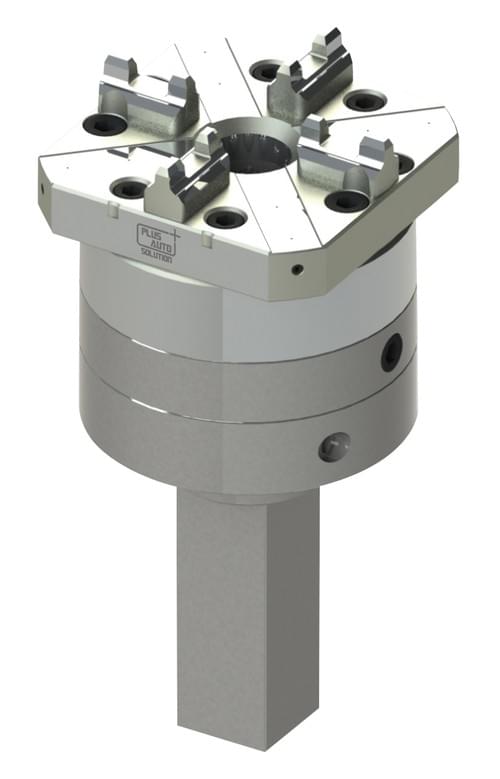

The PA-80004H Square Pneumatic Chuck builds upon the proven design of our EROWA ER-007521-compatible chuck but adds a critical feature for specialized applications: an integrated connection rod. This rod ensures perfect concentricity and rigidity, making it ideal for specialized EDM machines and other equipment that require a secure, tall, and perfectly aligned workholding solution.
Key Advantages:
- •
🎯 Integrated Connection Rod for Concentricity: The built-in rod ensures perfect alignment and eliminates runout, providing superior stability and precision during deep cavity EDM or fine-detail machining operations.
- •
⚙️ Broad Machine Compatibility: Designed to fit specialized EDM machines and other equipment that require an extended, rigid connection point. A versatile solution where standard chucks cannot reach.
- •
💪 6000N Clamping Force: Offers more than double the holding power of a standard EROWA ER-007521 (2,500N), ensuring absolute security for heavier electrodes and workpieces.
- •
🧼 6 Bar Air Cleaning: Automatically expels chips and coolant during operation, maintaining accuracy and protecting the chuck's precision surfaces from debris.
- •
🛡️ Premium Construction: CNC-machined from Nippon Stainless Steel and hardened to 57-60 HRC for maximum durability and long-term accuracy.
Technical Specifications:
- •
Model: PA-80004H
- •
Type: Square Pneumatic Chuck with Connection Rod
- •
Clamping Force: 6,000 N
- •
Air Pressure: 6 Bar (with Air Cleaning Function)
- •
Material: Nippon Stainless Steel
- •
Hardness: 57 - 60 HRC
- •

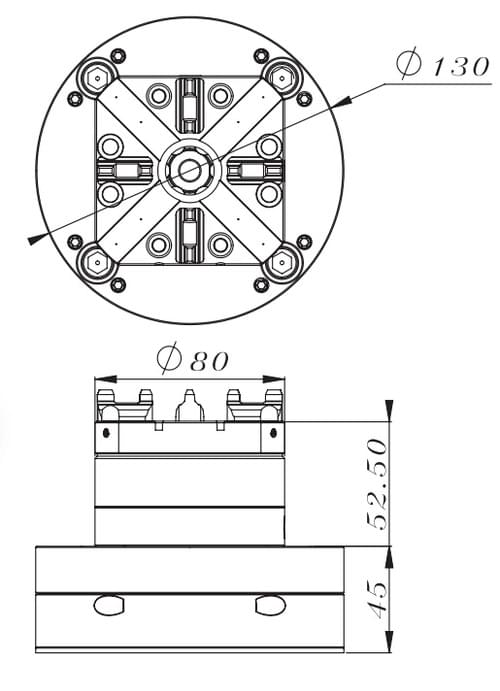

Dimensions (LxWxH): 80 x 80 x 171 mm
Applications:
- •
Specialized EDM Machines requiring extended height and concentricity
- •
Deep Cavity Mold Machining
- •
Precision machining on equipment needing a rigid, tall connection point
- •
High-precision electrode and mold manufacturing
