PA-80002H 80mm CNC Pneumatic Chuck | EROWA ER-012299 Replacement
The Ultimate EROWA ER-012299 Upgrade: Dual Mounting + Air Cleaning

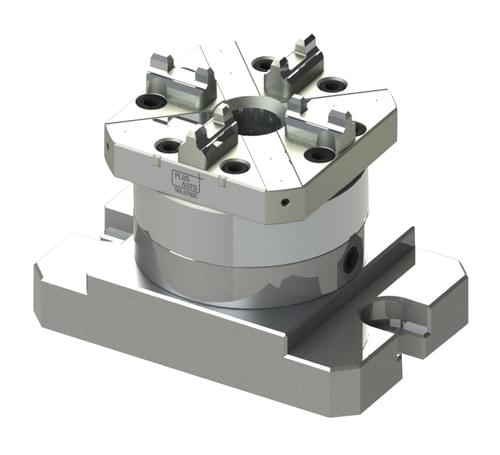

Our PA-80002H Square CNC Pneumatic Chuck solves key limitations of the EROWA ER-012299 "Rapid-action chuck NSF on plate." While EROWA's model only works with magnetic plates, our solution adds direct screw mounting and integrated air cleaning—making it the smarter choice for modern workshops.
Key Advantages Over EROWA ER-012299:
- •
🔩 Dual Mounting Flexibility: Unlike the ER-012299 (magnetic-only), our chuck securely mounts on magnetic plates or bolts directly to CNC tables. Eliminates slippage risk during heavy machining.
- •
🧼 6 Bar Air Cleaning System: Flushes chips/coolant automatically during operation (vs. manual cleaning on EROWA), ensuring consistent accuracy and zero downtime.
- •
⚡ Full Pneumatic Automation: Replaces manual clamping with one-touch pneumatic operation for faster cycles and safer handling.
- •
🛡️ Premium Japanese Stainless Steel: Hardened to 57-60 HRC for extreme wear resistance—outlasting standard EROWA materials.
Technical Comparison:
Feature | EROWA ER-012299 | Our PA-80002H |
|---|---|---|
Clamping Force | 7,000 N | 7,000 N |
Mounting | Magnetic Plate Only | Magnetic + Screw Fixation |
Cleaning | Manual | Auto 6 Bar Air Cleaning |
Operation | Manual | Pneumatic Automated |
Material | Not Specified | Nippon Stainless Steel (57-60 HRC) |
Applications:
EDM electrode fabrication, precision mold machining, medical/aerospace component processing.
