[Product Title]
Versatile Multi-Base Pneumatic Chuck PA-70003G (D100)

[Core Description]
Engineered for cross-platform machining flexibility, this pneumatic chuck features a **patented multi-functional base** allowing direct mounting on CNC mills, EDM machines, and CMMs without adapters. Delivers 10,000N clamping force with integrated 6 Bar air-cleaning technology.

[Key Advantages]
🔄 **UNIVERSAL BASEPLATE**: T-slot/EDM bolt pattern hybrid design
💪 **10,000N CLAMPING FORCE**: 67% stronger than standard D100 chucks
🌀 **AUTO DEBRIS CLEANING**: Dual-line air purge at 6 Bar pressure
🔌 **EROWA ITS READY**: Pre-installed identification chip

[Technical Specifications]
▪ Model: PA-70003G (D100)

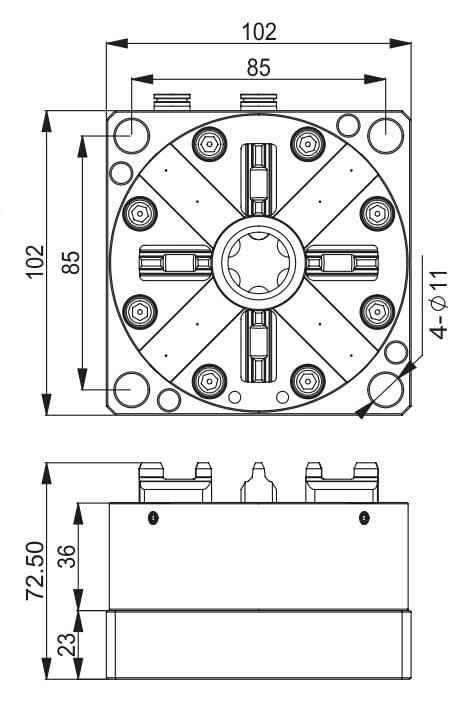

▪ Dimensions: 102×102×72.5 mm (L×W×H)
▪ Material: Nippon Stainless Steel
▪ Hardness: 57-60 HRC
▪ Air Pressure: 6 Bar (with Cleaning Function)
▪ Force Power: 10,000 N (Max)
▪ Weight: 1.8 kg

[Compatibility]
▶ **EROWA ITS** automated identification
▶ **All D100 Standard Pallets** (ø115mm/ø148mm)
▶ **PM Series Electrode Holders** (PM56-PM110)
▶ **Hybrid Mounting**:
   - CNC: ISO40/50 Cat40 flange bolts
   - EDM: 4× M8 bolts (Ø85mm PCD)

[Applications]
• Multi-process workpiece transfer (CNC→EDM→CMM)
• Job shop flexible manufacturing cells
• Training academy equipment setups
• R&D prototype machining
