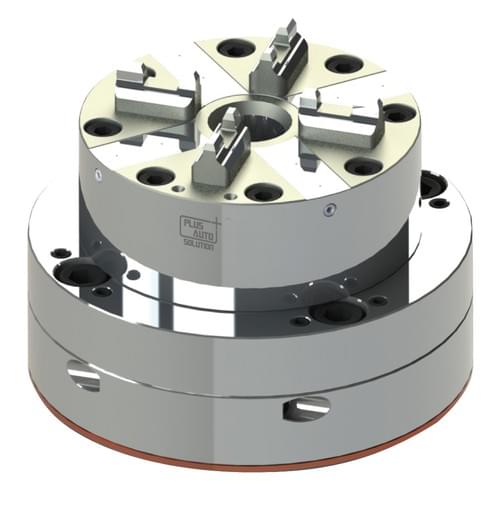

EDM Pneumatic Chuck PA-70002G (D100)

Engineered exclusively for EDM automation with dedicated spark-erosion resistant baseplate. Delivers 10,000N clamping force at 6 Bar pressure and features built-in air-cleaning technology to prevent debris buildup in submerged machining environments. Direct compatibility with Erowa ITS systems.

⚡ **EDM-SPECIFIC BASEPLATE** - Anti-corrosion coating for dielectric fluid environments
⚡ **10,000N CLAMPING POWER** - Holds electrodes rigidly during deep-cavity erosion
⚡ **AUTO AIR CLEANING** - Blasts debris from clamping mechanism at 6 Bar
⚡ **PLUG-AND-PLAY AUTOMATION** - Pre-configured for Erowa robot integration

▪ Model: PA-70002G (D100)

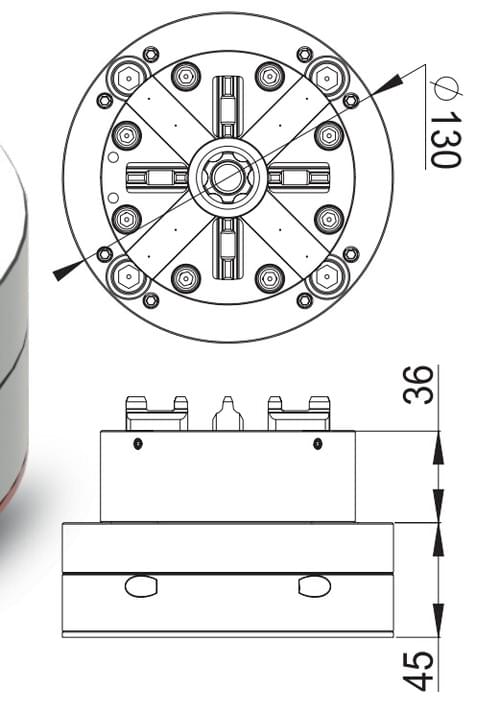

▪ Dimensions: Φ130×81 mm (Dia.×Height)
▪ Material: Nippon Stainless Steel (Anti-Spark Erosion Grade)
▪ Hardness: 57-60 HRC
▪ Clamping Force: 10,000 N
▪ Air Pressure: 6 Bar with Pulse Cleaning Cycle

▶ **EROWA ITS & Robotics Ready**
▶ **Electrode Holders**: PM85/PM110 Heavy-Duty Series
▶ **Workholding**: Compatible with all Erowa D100 pallet systems
▶ **Mounting**: Standard M8 bolt pattern (4× Ø8.4mm holes @ Ø85mm PCD)

• Deep-cavity graphite/copper electrode machining
• 24/7 unmanned EDM production cells
• High-precision mold core erosion
• Medical micro-EDM applications
