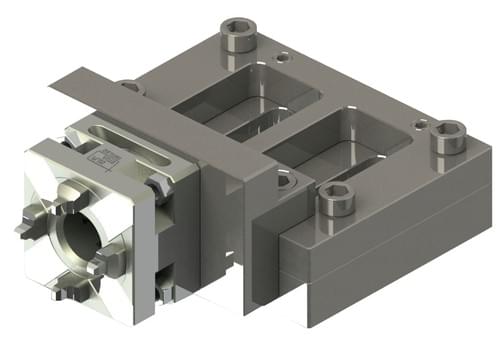

PA-16004Q Adjustable Angle WEDM Holder | EROWA ER-017198 Replacement | 4000N Force |130×155×67mm
Angle-Adjustable WEDM Solution: Premium EROWA ER-017198 Alternative with Enhanced Features
The PA-16004Q Adjustable WEDM Holder represents a significant upgrade over the EROWA ER-017198 Basic Adapter, offering superior functionality and precision for wire-cut EDM applications. While maintaining full compatibility with EROWA systems, this advanced holder features an innovative angle-adjustable base that provides unparalleled flexibility in workpiece positioning and machining angle optimization.
Key Features & Benefits:
- •
🔄 Angle-Adjustable Base: Unique design allows precise angular adjustments for optimized machining positioning, surpassing the fixed design of ER-017198
- •
🔧 Enhanced Dimensions: 130×155×67mm size provides greater stability and work area compared to the standard 120×100×14mm EROWA adapter
- •
💪 4000N Clamping Force: Robust holding power ensures secure workpiece retention during precision WEDM operations
- •
🛡️ Premium Construction: Nippon Stainless Steel with 57-60 HRC hardness offers exceptional durability and corrosion resistance
- •
⚡ Direct Machine Mounting: Compatible with standard Z-zero bases and WEDM machine tables using enclosed bolts
- •
📦 Complete Package: Includes stainless steel handle for immediate operation
Technical Comparison:
Feature | EROWA ER-017198 | Our PA-16004Q |
|---|---|---|
Model Type | Basic Adapter | Adjustable WEDM Holder |
Dimensions | 120×100×14mm | 130×155×67mm (enhanced) |
Adjustability | Fixed | Angle-adjustable base |
Clamping Force | Not Specified | 4000N |
Material | Not Specified | Nippon Stainless Steel |
Hardness | Not Specified | 57-60 HRC |
Included | Not Specified | Stainless Steel Handle |
Technical Specifications:
- •
Model: PA-16004Q Adjustable WEDM Holder
- •
Dimensions: 130 × 155 × 67 mm
- •
Material: Nippon Stainless Steel
- •
Hardness: 57-60 HRC
- •
Clamping Force: 4,000 N
- •
Base Type: Angle-adjustable
- •
Mounting: Direct to machine Z-zero base with enclosed bolts
- •
Included: Stainless Steel Handle ×1 PC
- •
Application: Wire-cut EDM (WEDM) and EDM machining
Advanced Applications:
- •
Precision wire-cut EDM operations requiring angular adjustments
- •
Complex workpiece positioning and fixturing
- •
Multi-angle machining setups in WEDM applications
- •
Precision electrode holding with optimized angles
- •
Complex geometric part machining
- •
High-accuracy manufacturing processes
Installation & Operation:
- •
Direct mounting to existing Z-zero base using enclosed bolts
- •
Easy angle adjustment mechanism for optimal positioning
- •
Compatible with standard WEDM machine tables
- •
Immediate operational readiness with included handle
- •
Suitable for both manual and automated operations
Performance Advantages:
- •
Superior angular flexibility compared to fixed adapters
- •
Enhanced stability with larger base dimensions
- •
Excellent corrosion resistance for EDM environments
- •
Precision accuracy for demanding WEDM applications
- •
Cost-effective alternative with enhanced features
