PA-16002Q 3-Axis Precision Control Jig | EROWA ER-008856 Replacement | WEDM Fixturing Solution |
Advanced 3-Axis Precision Fixturing: Complete EROWA ER-008856 Replacement for WEDM Applications

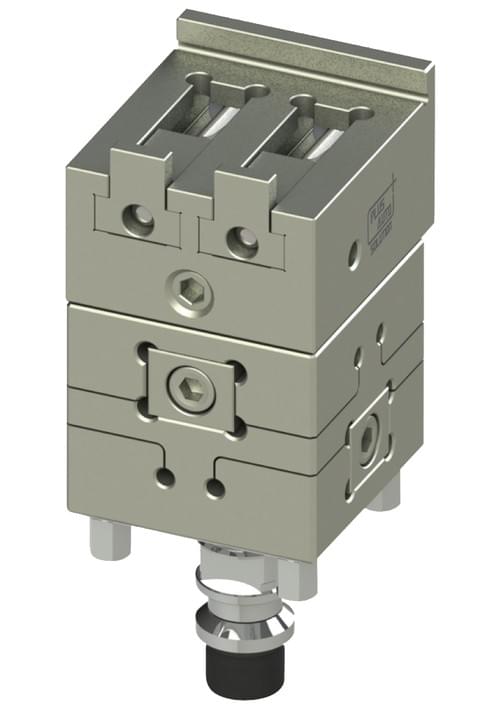

The PA-16002Q 3-Axis High Precision Control Jig is a superior alternative to the EROWA ER-008856 Rotatable Pendulum Vise, offering enhanced precision and functionality for wire-cut EDM operations. This advanced fixturing solution provides exceptional workpiece positioning capabilities with three-axis fine adjustment and 360° continuous rotation, making it ideal for complex WEDM machining tasks.
Key Features & Benefits:
- •
🎯 3-Axis Fine Adjustment: Precision control in X, Y, and Z axes for exact workpiece positioning, surpassing standard vise capabilities
- •
🔄 360° Continuous Rotation: Full rotational freedom enables optimal positioning for complex WEDM operations without repositioning
- •
🛡️ Premium Construction: Stainless Steel 420 with 50-53 HRC hardness ensures maximum durability and precision maintenance
- •
🔧 EROWA ER-008856 Compatibility: Direct replacement with enhanced features and improved precision
- •
⚡ WEDM-Optimized Design: Specifically engineered for wire-cut EDM applications with excellent corrosion resistance
Technical Comparison:
Feature | EROWA ER-008856 | Our PA-16002Q |
|---|---|---|
Model | Rotatable Pendulum Vise 0-100 UnoSet | 3-Axis High Precision Control Jig |
Dimensions | Not Specified | 60×55×97.2mm |
Material | Not Specified | Stainless Steel 420 |
Hardness | Not Specified | 50-53 HRC |
Adjustment | Three-axis positioning | Three-axis fine adjustment |
Rotation | 360° continuous | 360° continuous |
Application | General fixturing | WEDM-optimized |
Technical Specifications:
- •
Model: PA-16002Q 3-Axis High Precision Control Jig
- •
Dimensions: 60 × 55 × 97.2 mm
- •
Material: Stainless Steel 420
- •
Hardness: 50-53 HRC
- •
Adjustment Capability: Three-axis fine adjustment
- •
Rotation: 360° continuous
- •
Clamping Range: 0-100 mm
- •
Max Load Capacity: 5 kg
- •
Primary Application: Wire-cut EDM (WEDM)
Advanced Applications:
- •
Precision wire-cut EDM operations
- •
Complex workpiece positioning and fixturing
- •
Multi-axis adjustable machining setups
- •
High-precision electrode holding and positioning
- •
Complex geometric part machining
- •
Precision manufacturing and tooling applications
Performance Features:
- •
Excellent corrosion resistance for WEDM environments
- •
Precision ground surfaces for accurate positioning
- •
Secure clamping for delicate operations
- •
Smooth rotation mechanism for optimal positioning
- •
Long-term accuracy maintenance
- •
Easy integration with existing WEDM systems
