PA-16001Q V-Shape Wire-Cut EDM Holder | EROWA ER-016691 Replacement | ±0.005mm Concentric Tolerance

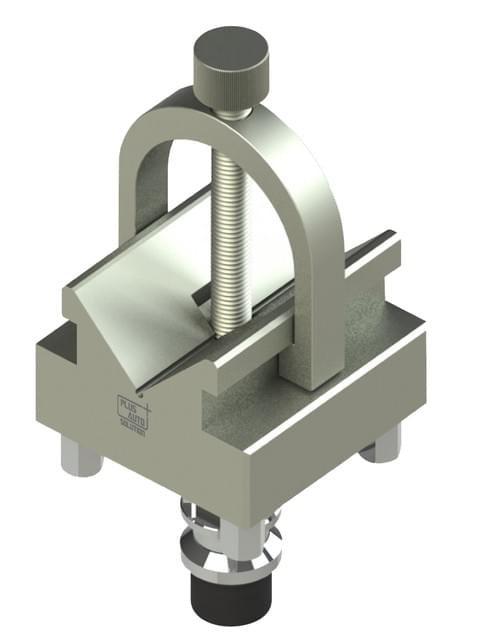

Precision wire-cut EDM solution: The PA-16001Q V-Shape EDM Holder (55×55×86.5mm) provides ±0.005mm concentric tolerance for EDM/WEDM applications. Made from Stainless Steel 420 (50-53 HRC), this V-block holder supports parts up to ø40×150mm with 1.5kg max load. Direct replacement for EROWA ER-016691.
3. Product Description Details
Precision V-Block Holder for Wire-Cut EDM: Complete EROWA ER-016691 Alternative
The PA-16001Q V-Shape Wire-Cut EDM Holder is a high-precision replacement for the EROWA ER-016691 V-block holder UnoSet, specifically designed for wire-cut EDM and prismatic slot applications. This precision fixture maintains parallel and angular accuracy of 0.01mm while offering enhanced durability and cost efficiency for demanding EDM/WEDM operations.
Key Features & Benefits:
- •
⚡ Direct EROWA ER-016691 Replacement: Perfect compatibility with existing systems and applications, offering identical performance at a competitive price point
- •
🎯 High Precision Holding: Maintains 0.01mm parallel and angular accuracy for precision wire-cut EDM operations
- •
🛡️ Durable Construction: Stainless Steel 420 with 50-53 HRC hardness provides excellent wear resistance in EDM environments
- •
📏 Optimized Dimensions: 55×55×86.5mm compact size with V-shape design for efficient part holding
- •
🔧 Versatile Application: Supports parts up to ø40×150mm with 1.5kg maximum load capacity
Technical Comparison:
Feature | EROWA ER-016691 | Our PA-16001Q |
|---|---|---|
Type | V-block holder UnoSet | V-shape Wire-cut EDM Holder |
Dimensions | Not Specified | 55×55×86.5mm |
Material | Not Specified | Stainless Steel 420 |
Hardness | Not Specified | 50-53 HRC |
Accuracy | 0.01mm parallel/angular | 0.01mm parallel/angular |
Concentric Tolerance | Not Specified | ±0.005mm |
Technical Specifications:
- •
Model: PA-16001Q V-Shape Wire-Cut EDM Holder
- •
Dimensions: 55 × 55 × 86.5 mm
- •
Material: Stainless Steel 420
- •
Hardness: 50-53 HRC
- •
Tolerance: ±0.005mm Concentric Tolerance
- •
Parallel/Angular Accuracy: 0.01 mm
- •
Clamping Range: Parts up to ø40 × 150 mm
- •
Max Load Capacity: 1.5 kg
- •
Application: EDM/WEDM Machining
Applications:
- •
Wire-cut EDM (WEDM) operations
- •
Prismatic slot part holding and positioning
- •
Precision electrode holding and alignment
- •
Small part fixturing in EDM processes
- •
Precision machining and manufacturing
- •
Quality control and inspection holding
Performance Features:
- •
Excellent concentricity for precision machining
- •
Secure holding for delicate EDM operations
- •
Corrosion resistance for EDM dielectric environments
- •
Long-term accuracy maintenance
- •
Easy integration with existing EDM systems
