PA-15008P D4 Ball Magnetic Centering Probe | EDM/CNC Reference Point | Φ38×100mm
Magnetic Reference Point Solution: Rapid Workpiece Centering for CNC/EDM Applications

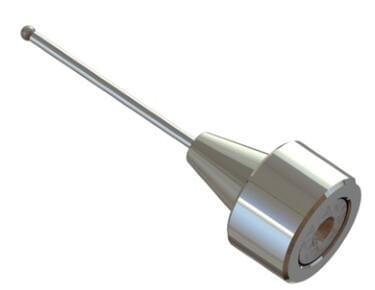

The PA-15008P D4 Ball Magnetic Centering Probe offers a efficient solution for establishing precise reference points on machine tables. This magnetic probe吸附 (adsorbs) securely to CNC/EDM work surfaces, providing a reliable datum point for workpiece positioning and centering operations, significantly reducing setup time and improving machining accuracy.
Key Features & Benefits:
- •
🧲 Magnetic Base: Provides secure adhesion to machine tables without clamps or fixtures, enabling quick placement and removal
- •
🎯 D4 Ball Tip: Precision ball end serves as accurate reference point for centering operations and position verification
- •
⚡ Rapid Setup: Eliminates complex fixturing, allowing operators to establish reference points in seconds
- •
🛡️ Durable Construction: Stainless Steel 420 with 30-36 HRC hardness ensures longevity in workshop environments
- •
🔧 Universal Compatibility: Works with all CNC and EDM machines with ferromagnetic work surfaces
Technical Specifications:
- •
Model: PA-15008P D4 Ball Magnetic Centering Probe
- •
Overall Dimensions: Φ38 × 100 mm
- •
Material: Stainless Steel 420
- •
Hardness: 30-36 HRC
- •
Reference Ball: D4 Precision Ball
- •
Base Type: Magnetic Adhesion
- •
Application: Workpiece Centering & Positioning
Operation Process:
- 1.
Place the magnetic probe on clean machine table
- 2.
Allow magnetic force to secure probe in position
- 3.
Use D4 ball as reference point for workpiece alignment
- 4.
Perform centering operations using probe as datum
- 5.
Remove easily after completion of operations
Applications:
- •
CNC machine workpiece setup and centering
- •
EDM electrode positioning and alignment
- •
Reference point establishment for batch processing
- •
Machine calibration and verification
- •
Precision positioning in manufacturing processes
- •
Educational and training applications
Advantages Over Traditional Methods:
Traditional Methods | PA-15008P Magnetic Probe |
|---|---|
Mechanical clamping required | Magnetic adhesion - no tools needed |
Time-consuming setup | Seconds to establish reference point |
Potential surface damage | No clamping marks or damage |
Fixed position limitations | Flexible placement anywhere on table |
