PA-15005P Gauging Pin | EROWA ER-008617 Replacement | ITS Chuck Alignment | ±0.002mm Concentric Tole

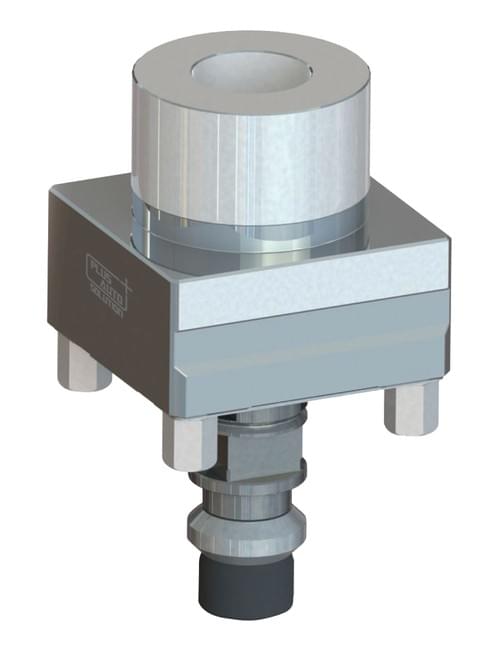

Precision Chuck Alignment: EROWA ER-008617 Compatible Gauging Pin for ITS Systems
The PA-15005P Gauging Pin is a direct replacement for the EROWA ER-008617 alignment tool, specifically designed for calibrating ITS chucks in radial, axial, and angular positions. This precision-ground pin ensures accurate chuck centering during rotation, maintaining the strict ±0.002mm concentric tolerance required for high-precision machining operations.
Key Features & Benefits:
- •
🎯 ±0.002mm Concentric Tolerance: Guarantees precise alignment of ITS chucks during rotational positioning operations
- •
🛡️ Hardened & Ground Construction: Stainless Steel 420 material hardened to 48-52 HRC ensures durability and maintains precision in industrial environments
- •
🔧 EROWA ER-008617 Direct Replacement: Perfectly compatible with existing ITS chuck systems and alignment procedures
- •
⚡ Multi-Position Alignment: Designed for radial, axial, and angular chuck positioning calibration
- •
📏 Optimized Dimensions: 51×51×60mm size provides ideal handling and integration with standard ITS equipment
Technical Comparison:
Feature | EROWA ER-008617 | Our PA-15005P |
|---|---|---|
Type | Gauging Pin | Gauging Pin |
Application | ITS Chuck Alignment | ITS Chuck Alignment |
Material | INOX (Stainless Steel) | Stainless Steel 420 |
Hardness | Hardened, Ground | 48-52 HRC |
Tolerance | Not Specified | ±0.002mm Concentric |
Dimensions | Not Specified | 51×51×60mm |
Technical Specifications:
- •
Model: PA-15005P Gauging Pin
- •
Overall Dimensions: 51 × 51 × 60 mm
- •
Material: Stainless Steel 420
- •
Hardness: 48-52 HRC
- •
Tolerance: ±0.002mm Concentric Tolerance
- •
Surface Treatment: Hardened and Ground
- •
Application: ITS Chuck Alignment
Primary Applications:
- •
Radial positioning calibration of ITS chucks
- •
Axial alignment of chuck systems
- •
Angular position adjustment and verification
- •
Rotational center finding during chuck setup
- •
Precision machining center calibration
- •
Maintenance and verification of chuck accuracy
Operation Principle:
The gauging pin is used during chuck calibration procedures to ensure perfect concentricity during rotation. When inserted into the ITS chuck system, it allows operators to verify and adjust radial, axial, and angular positions to achieve the required ±0.002mm tolerance for precision machining operations.
