PA-15004P Spring-Loaded Centering Sensor | EROWA ER-008638 Replacement | XYZ Overrun Protection
Complete EROWA ER-008638 Alternative: Spring-Loaded Sensor with Full Overrun Protection

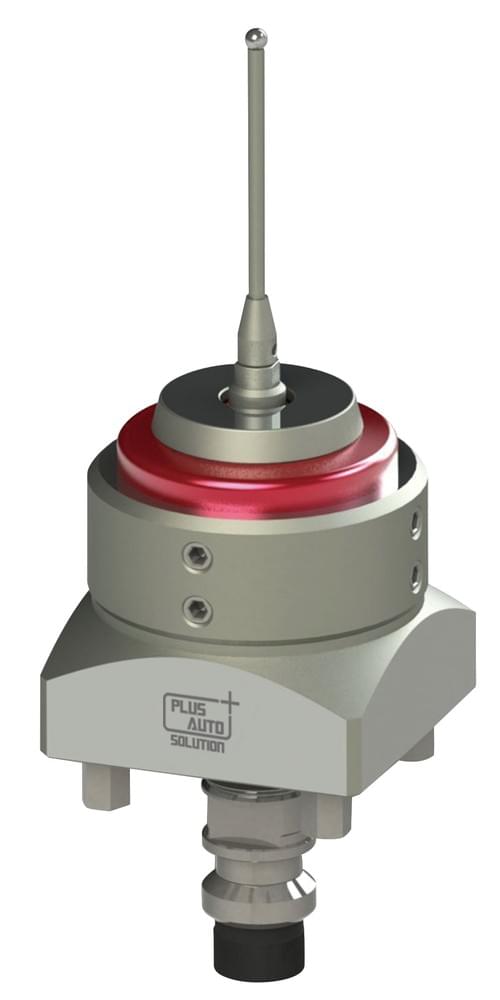

The PA-15004P Spring-Loaded Centering Sensor is a premium alternative to the EROWA ER-008638, offering identical functionality including crucial XYZ 1mm overrun protection and 0.002mm repetition accuracy. While maintaining all the advanced features of the original EROWA sensor, our solution provides significant cost savings without compromising performance.
Key Features & Benefits:
- •
🛡️ XYZ 1mm Overrun Protection: Full protection in all directions prevents damage during automatic measurement operations, matching EROWA's safety features
- •
🎯 0.002mm Repetition Accuracy: Delivers exceptional precision for automatic workpiece measurement in CNC EDM sinking centers
- •
🔧 Spring-Loaded Sensing Pin: Tungsten carbide ball with spring mechanism ensures reliable contact detection and protects against accidental impacts
- •
💰 Significant Cost Savings: Offers identical performance to EROWA ER-008638 at a substantially lower price point
- •
⚡ Automatic Measurement Ready: Perfect for automated CNC EDM operations requiring precise workpiece positioning
Technical Comparison:
Feature | EROWA ER-008638 | Our PA-15004P |
|---|---|---|
Sensor Type | Spring-loaded with tungsten ball | Spring-loaded with tungsten ball |
Overrun Protection | XYZ 1mm protection | XYZ 1mm protection |
Accuracy | 0.002mm repetition accuracy | 0.002mm repetition accuracy |
Ball Diameter | ø5mm tungsten carbide ball | D4 centering sensor |
Application | CNC EDM sinking centers | CNC EDM sinking centers |
Technical Specifications:
- •
Model: PA-15004P Spring-Loaded Centering Sensor
- •
Overall Dimensions: 56 × 56 × 140 mm
- •
Sensor Type: Spring-loaded sensing pin
- •
Material: Stainless Steel 420
- •
Hardness: 32-36 HRC
- •
Accuracy: 0.002mm repetition accuracy (X,Y,Z)
- •
Overrun Protection: XYZ 1mm
- •
Application: Automatic workpiece measurement in CNC EDM
Advanced Features:
- •
Spring-loaded mechanism for impact protection
- •
Tungsten carbide ball for durability
- •
Automatic measurement capability
- •
CNC EDM center compatibility
- •
Precision workpiece positioning
Applications:
- •
Automatic workpiece measurement in CNC EDM sinking centers
- •
Precision positioning in manufacturing processes
- •
Quality control and automated inspection
- •
High-accuracy machine tool calibration
- •
Industrial automation systems
