PA-15003P D8 Centering Sensor | 8mm Tungsten Carbide Ball | EDM Touch Probe | ±0.002mm Accuracy

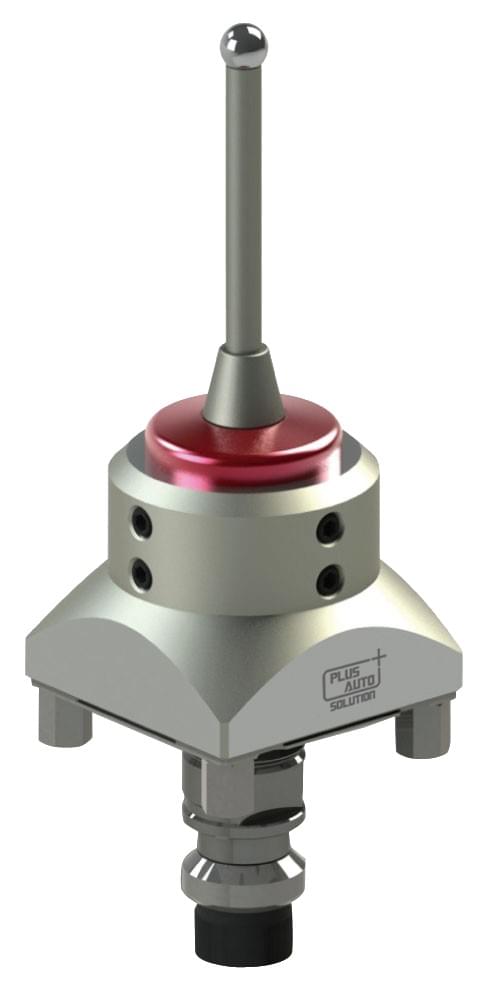

Large-Tip Precision Centering: 8mm Tungsten Carbide Sensor for Enhanced EDM Positioning
The PA-15003P D8 Centering Sensor extends our centering series with an industry-leading 8mm tungsten carbide ball tip, designed for maximum durability and exceptional visibility in complex machining environments. This precision sensor delivers reliable electrical contact detection for accurate center finding in EDM spark machines and high-precision machining centers.
Key Features & Benefits:
- •
⚡ 8mm Tungsten Carbide Ball Tip: Largest diameter in the series provides superior durability, optimal visibility during operation, and maximum contact surface reliability
- •
🎯 Ultra-High Precision: Maintains ±0.002mm concentric tolerance for critical workpiece positioning and center finding operations
- •
🛡️ Industrial-Grade Construction: Crafted from Stainless Steel 420 with 32-36 HRC hardness for exceptional wear resistance in demanding workshop environments
- •
🔧 Electrical Contact Detection: Delivers reliable signaling when the probe contacts workpiece surfaces, enabling precise machine positioning and parameter recording
- •
📏 Optimized Dimensions: 51×51×120mm size ensures compatibility with all standard EDM machines and precision equipment
Technical Specifications:
- •
Model: PA-15003P D8 Centering Sensor
- •
Overall Dimensions: 51 × 51 × 120 mm
- •
Sensor Tip: 8mm Tungsten Carbide Ball (largest in series)
- •
Material: Stainless Steel 420
- •
Hardness: 32-36 HRC
- •
Accuracy: ±0.002mm concentric tolerance
- •
Application: EDM spark machine centering and precision positioning
- •
Operation Principle: Electrical contact detection
Series Comparison:
Feature | PA-15001P (D4) | PA-15002P (D6) | PA-15003P (D8) |
|---|---|---|---|
Ball Diameter | 4mm | 6mm | 8mm (largest) |
Visibility | Standard | Improved | Optimal visibility |
Durability | Good | Enhanced | Maximum durability |
Contact Surface | Standard | Larger | Largest contact area |
Applications:
- •
EDM spark machine workpiece centering and alignment
- •
Precision CNC machine setup and calibration
- •
Complex workpiece center finding operations
- •
High-accuracy manufacturing process setup
- •
Quality control and precision measurement applications
- •
Tool setting and machine calibration in industrial environments
Operation Principle:
The centering sensor operates on electrical contact detection principle. When the 8mm tungsten carbide ball tip contacts the workpiece surface, it completes an electrical circuit that signals the machine to stop movement and record the exact position. This enables accurate determination of workpiece center coordinates and setup parameters for subsequent machining operations.
Ideal For:
- •
High-precision EDM operations requiring maximum positioning accuracy
- •
Manufacturing environments needing the most durable centering solutions
- •
Applications where superior sensor visibility is critical for operation safety
- •
Precision machining centers demanding the highest level of setup repeatability
