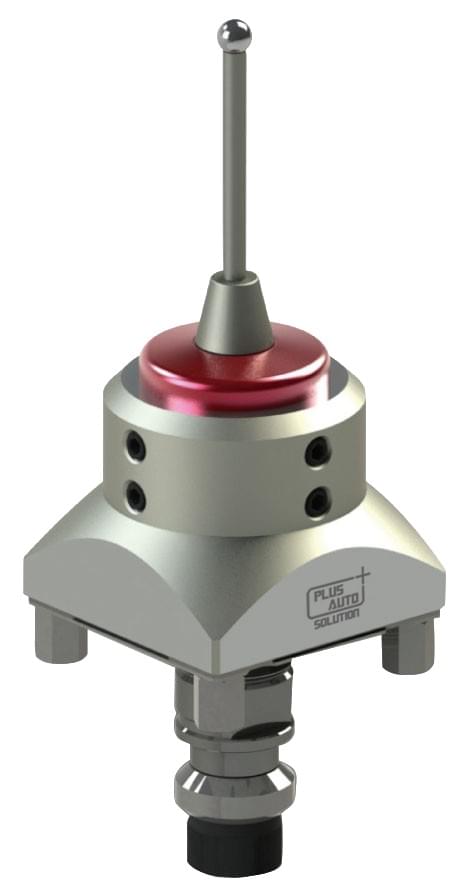

PA-15002P D6 Centering Sensor | 6mm Tungsten Carbide Ball | EDM Touch Probe | ±0.002mm Accuracy
Enhanced Precision Centering: 6mm Tungsten Carbide Sensor for Superior EDM Positioning
The PA-15002P D6 Centering Sensor builds upon our proven centering technology with an upgraded 6mm tungsten carbide ball tip, providing enhanced durability and improved visibility during workpiece positioning operations. This precision sensor delivers reliable electrical contact detection for accurate center finding in EDM spark machines and other precision machining equipment.
Key Features & Benefits:
- •
⚡ 6mm Tungsten Carbide Ball Tip: Larger diameter provides improved durability, better visibility during operation, and more reliable contact detection compared to standard smaller tips
- •
🎯 High Precision Accuracy: Maintains ±0.002mm concentric tolerance for precise workpiece positioning and center finding operations
- •
🛡️ Durable Construction: Made from Stainless Steel 420 with 32-36 HRC hardness for excellent wear resistance in industrial environments
- •
🔧 Electrical Contact Detection: Provides reliable signaling when the probe contacts workpiece surfaces, enabling accurate machine positioning
- •
📏 Compact Design: 51×51×110mm dimensions ensure compatibility with various EDM machines and precision equipment
Technical Specifications:
- •
Model: PA-15002P D6 Centering Sensor
- •
Overall Dimensions: 51 × 51 × 110 mm
- •
Sensor Tip: 6mm Tungsten Carbide Ball
- •
Material: Stainless Steel 420
- •
Hardness: 32-36 HRC
- •
Accuracy: ±0.002mm concentric tolerance
- •
Application: EDM spark machine centering and positioning
- •
Operation Principle: Electrical contact detection
Comparison with Standard Sensors:
Feature | Standard 5mm Sensor | PA-15002P 6mm Sensor |
|---|---|---|
Ball Diameter | 5mm | 6mm (enhanced size) |
Visibility | Standard | Improved visibility |
Durability | Good | Enhanced durability |
Contact Reliability | Standard | Improved contact surface |
Applications:
- •
EDM spark machine workpiece centering
- •
Precision CNC machine setup and alignment
- •
Workpiece center finding and positioning
- •
Manufacturing process setup and calibration
- •
Quality control and measurement applications
- •
Tool setting and machine calibration
Operation Principle:
The centering sensor operates on electrical contact detection principle. When the 6mm tungsten carbide ball tip makes contact with the workpiece surface, it completes an electrical circuit that signals the machine to stop movement and record the position. This allows for accurate determination of workpiece center and setup parameters for subsequent machining operations.
Ideal For:
- •
High-precision EDM operations requiring accurate positioning
- •
Manufacturing environments needing reliable and durable centering solutions
- •
Applications where improved sensor visibility is beneficial
- •
Precision machining centers requiring repeatable setup accuracy
