Precision Machine Integration: Concentric Connection Rod for Specialized Equipment​

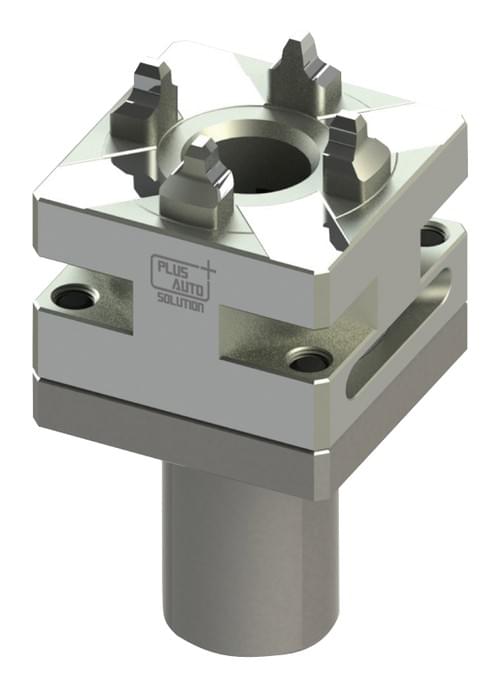

The ​PA-14004N Quick Chuck 50 with Concentric Connection Rod​ represents our ultimate solution for specialized machine tool integration. Building upon the proven PA-14001N design, this version features a precision-engineered concentric connection rod that enables perfect alignment and secure mounting on specific machine types, ensuring optimal performance in customized manufacturing environments.

​Key Advantages & Features:​​

• •

  ​🎯 Precision Concentric Connection:​​ Engineered rod ensures perfect alignment and vibration-free operation for specialized machine tools requiring exact mounting solutions

• •

  ​⚡ Quick-Change Compatibility:​​ Maintains full EROWA ER-034387 compatibility with 4000N clamping force while adding machine-specific adaptation capability

• •

  ​🛡️ Complete Corrosion Resistance:​​ 100% Nippon Stainless Steel construction (57-60 HRC) provides maximum durability in coolant-intensive environments

• •

  ​🔧 Custom Machine Integration:​​ Designed for seamless adaptation to specialized EDM, milling, and precision machining equipment

• •

  ​📏 Optimized Dimensions:​​ 167.2×56×56mm size provides ideal balance between reach and stability

​Technical Specifications:​​

• •

  ​Model:​​ PA-14004N Quick Chuck 50 with Connection Rod

• •

  ​Overall Dimensions:​​ 167.2 × 56 × 56 mm

• •

  ​Clamping Force:​​ 4,000 N

• •

  ​Material:​​ Nippon Stainless Steel

• •

  ​Hardness:​​ 57-60 HRC

• •

  ​Concentricity:​​ <0.002mm TIR

• •

  ​Mounting:​​ Standard ER-034387 pattern + specialized connection rod

• •

  ​Included:​​ Stainless Steel Handle ×1 PC

​Specialized Applications:​​

• •

  Custom machine tool integration

• •

  Specialized EDM equipment adaptation

• •

  Precision grinding machine applications

• •

  Medical device manufacturing equipment

• •

  Aerospace component machining systems

• •

  Research and development prototypes
