EDM-Specialized Workholding: Complete Solution for Electrical Discharge Machining​

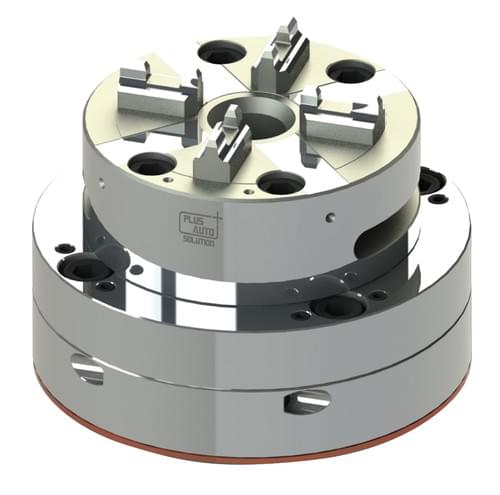

The ​PA-12004M Manual Chuck D100 with EDM Base​ is specifically engineered for electrical discharge machining environments. While maintaining full compatibility with EROWA ER-036345 systems, this version features an optimized base design perfect for EDM and wire-cut machines, providing superior stability and corrosion resistance in coolant-intensive operations.

​Key Features & Benefits:​​

• •

  ​⚡ EDM-Optimized Base Design:​​ φ130×81mm baseplate specifically engineered for EDM machine mounting, ensuring perfect compatibility and vibration-free operation

• •

  ​🔧 Full EROWA ER-036345 Compatibility:​​ Maintains identical 10,000N clamping force and functional compatibility while offering enhanced EDM performance

• •

  ​🛡️ Premium Corrosion Resistance:​​ Constructed from Nippon Stainless Steel with 57-60 HRC hardness, providing complete protection against EDM dielectric fluids and coolants

• •

  ​🎯 Precision EDM Performance:​​ Guarantees <0.002mm repeat accuracy for critical electrode machining and precision EDM operations

• •

  ​📦 Complete EDM Ready Package:​​ Includes stainless steel handle and optimized base for immediate EDM machine integration

​Technical Specifications:​​

• •

  ​Model:​​ PA-12004M Manual Chuck D100 with EDM Base

• •

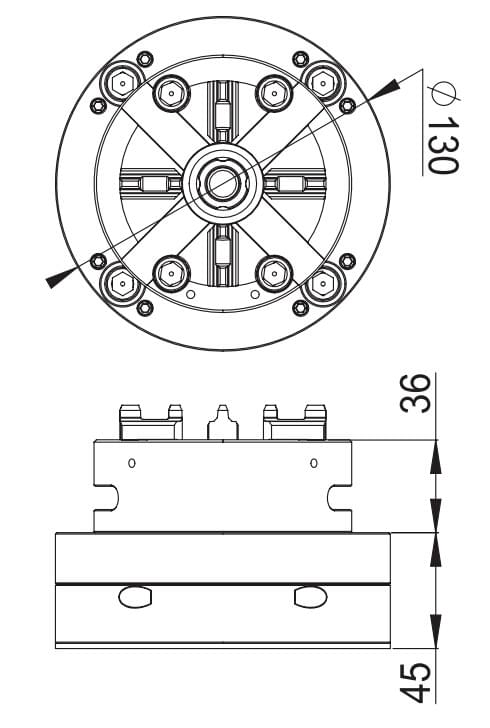

  ​Overall Dimensions:​​ φ130 × 81 mm

• •

  ​Clamping Force:​​ 10,000 N

• •

  ​Material:​​ Nippon Stainless Steel (complete unit)

• •

  ​Hardness:​​ 57-60 HRC

• •

  ​Max Operational Speed:​​ 3,000 rpm

• •

  ​Mounting:​​ EDM machine optimized base

• •

  ​Included:​​ Stainless Steel Handle ×1 PC

​EDM-Specific Applications:​​

• •

  Electrical discharge machining (EDM)

• •

  Wire-cut (WEDM) operations

• •

  Precision electrode manufacturing

• •

  Mold and die EDM processing

• •

  Small component EDM machining

• •

  Precision tooling and fixture applications
