CNC-Optimized Workholding: Complete EROWA-Compatible Solution for Machine Integration​

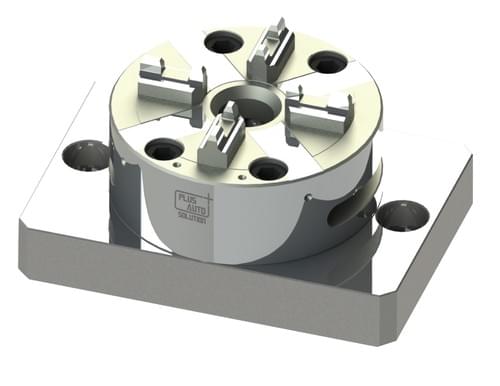

The ​PA-12003M Manual Chuck D100 with CNC Base​ represents the ultimate integration-ready solution for CNC machining environments. While maintaining full compatibility with EROWA ER-036345 systems, this version features a dedicated CNC baseplate designed for direct mounting to machine tables, providing superior stability and immediate operational readiness.

​Key Features & Benefits:​​

• •

  ​⚡ CNC-Optimized Base Design:​​ 145×100×72.5mm baseplate engineered specifically for direct mounting on CNC machine tables, offering enhanced rigidity and vibration damping

• •

  ​🔧 Full EROWA ER-036345 Compatibility:​​ Maintains identical clamping mechanism and 10,000N force capacity while providing superior mounting flexibility

• •

  ​🛡️ Premium Nippon Stainless Steel:​​ Entire unit constructed from corrosion-resistant stainless steel with 57-60 HRC hardness for maximum durability in demanding environments

• •

  ​🎯 Precision Engineering:​​ Guarantees <0.002mm repeat accuracy for high-precision CNC machining applications

• •

  ​📦 Complete Ready-to-Use Package:​​ Includes AL plug and stainless steel handle for immediate operation upon delivery

​Technical Specifications:​​

• •

  ​Model:​​ PA-12003M Manual Chuck D100 with CNC Base

• •

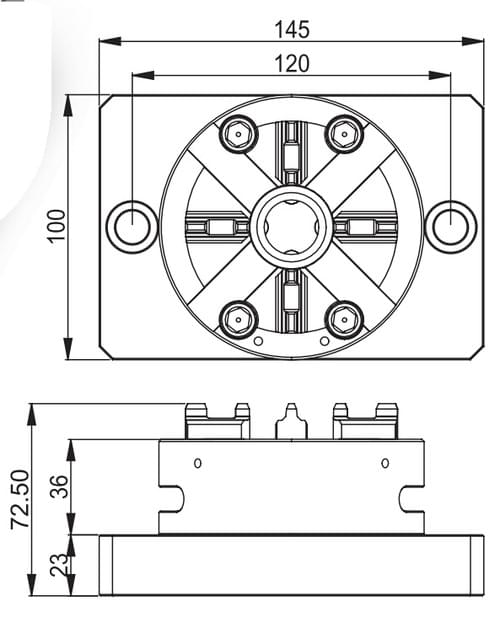

  ​Overall Dimensions:​​ 145 × 100 × 72.5 mm

• •

  ​Clamping Force:​​ 10,000 N

• •

  ​Material:​​ Nippon Stainless Steel (entire unit)

• •

  ​Hardness:​​ 57-60 HRC

• •

  ​Max Rotational Speed:​​ 3,000 rpm

• •

  ​Mounting:​​ CNC machine table direct mounting

• •

  ​Included:​​ AL Plug ×1 PC, Stainless Steel Handle ×1 PC

​CNC Applications:​​

• •

  CNC machining centers

• •

  Precision milling operations

• •

  Multi-axis machining setups

• •

  Production machining cells

• •

  High-precision component manufacturing

• •

  Automated manufacturing systems
