Premium Chuck with Integrated Base: Complete EROWA-Compatible Workholding Solution​

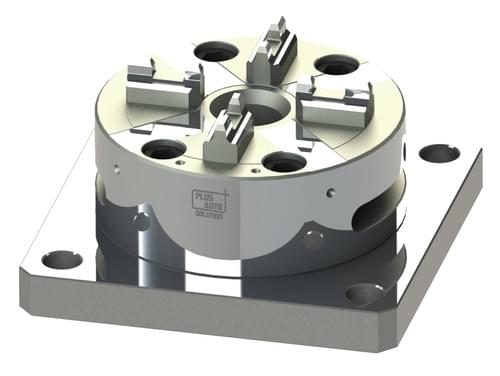

The ​PA-12002M Manual Chuck D100 with Standard Base​ builds upon our proven chuck design by integrating a precision 125×125mm stainless steel baseplate. This complete workholding solution offers enhanced stability, easy mounting, and full corrosion resistance while maintaining complete compatibility with EROWA-style tooling systems.

​Key Features & Benefits:​​

• •

  ​🛡️ Integrated 125×125mm Baseplate:​​ Provides immediate mounting capability without additional accessories, offering superior stability and vibration damping

• •

  ​🔧 Complete EROWA Compatibility:​​ Maintains full functional compatibility with ER-036345 systems while adding the convenience of an integrated base

• •

  ​💪 10,000N Clamping Force:​​ Robust holding power suitable for heavy-duty machining, milling, and grinding applications

• •

  ​⭐ Premium Nippon Stainless Steel:​​ Entire unit constructed from corrosion-resistant stainless steel with 57-60 HRC hardness for maximum durability

• •

  ​⚡ Ready-to-Use Package:​​ Includes AL plug and stainless steel handle for immediate operation

​Technical Specifications:​​

• •

  ​Model:​​ PA-12002M Manual Chuck D100 with Standard Base

• •

  ​Overall Dimensions:​​ 125 × 125 × 64.5 mm

• •

  ​Clamping Force:​​ 10,000 N

• •

  ​Material:​​ Nippon Stainless Steel (entire unit)

• •

  ​Hardness:​​ 57-60 HRC

• •

  ​Max Speed:​​ 3,000 rpm

• •

  ​Included:​​ AL Plug ×1 PC, Stainless Steel Handle ×1 PC

​Applications:​​

• •

  Precision milling operations

• •

  Surface and profile grinding

• •

  EDM and wire-cut machining

• •

  Lathe applications and turning centers

• •

  Fixture and workholding systems

• •

  General machining and tooling

​Advantage Over Standard Chucks:​​
