PA-12001M Manual Chuck D100 | EROWA ER-036345 Replacement | 10000N Clamping Force | Stainless Steel
Premium EROWA ER-036345 Alternative: High-Performance Manual Chuck for Precision Machining

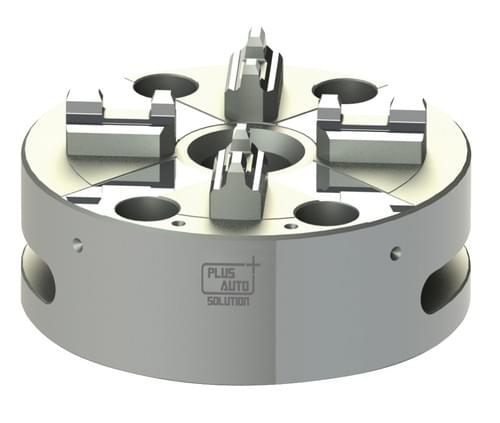

The PA-12001M Manual Chuck D100 is engineered as a superior direct replacement for the EROWA ER-036345 QuickChuck 100 P. Maintaining identical specifications and compatibility, our chuck offers enhanced durability and performance for various machining applications including lathes, milling, grinding, and EDM/WEDM operations.
Key Advantages:
- •
🔧 Direct EROWA Compatibility: Perfect replacement for ER-036345 systems with identical mounting pattern and 4×M8 bolt configuration
- •
💪 10,000N Clamping Force: Matches EROWA's performance with robust holding power for heavy-duty machining applications
- •
🛡️ Premium Nippon Stainless Steel: Superior corrosion resistance and durability with 57-60 HRC hardness rating
- •
⚡ Multi-Application Ready: Suitable for lathes, milling machines, grinding equipment, EDM/WEDM machines, fixtures, and dividing heads
- •
🎯 Precision Performance: Guarantees <0.002mm repeat accuracy for critical machining operations
Technical Comparison:
Specification | EROWA ER-036345 | Our PA-12001M |
|---|---|---|
Model | QuickChuck 100 P | Manual Chuck D100 |
Clamping Force | 10,000 N | 10,000 N |
Material | Stainless Steel | Nippon Stainless Steel |
Hardness | Not Specified | 57-60 HRC |
Max Speed | 3,000 rpm | 3,000 rpm |
Mounting | 4×M8 bolts | 4×M8 bolts |
Included | Not Specified | Stainless Steel Handle |
Applications:
- •
Lathe operations and turning centers
- •
Precision milling applications
- •
Surface and profile grinding
- •
EDM and wire-cut (WEDM) machining
- •
Dividing heads and rotary tables
- •
Fixture and workholding systems
Specifications:
- •
Model: PA-12001M Manual Chuck D100
- •

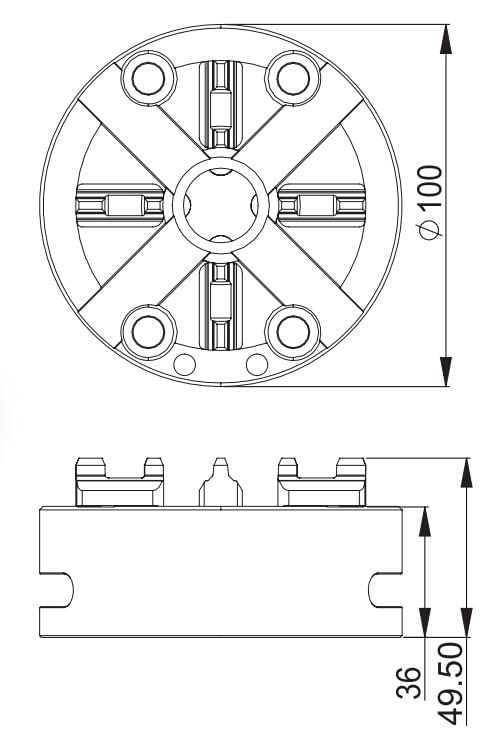

Size: φ100×49.5mm
- •
Clamping Force: 10,000 N
- •
Material: Nippon Stainless Steel
- •
Hardness: 57-60 HRC
- •
Max Speed: 3,000 rpm
- •
Included: Stainless Steel Handle ×1 PC
