PA-10003K 9-in-1 High-Density Pneumatic Chuck | Batch Processing Solution | EROWA-Compatible Workhol
Ultimate Batch Processing: Nine Workpieces, One Setup, Complete Cycle

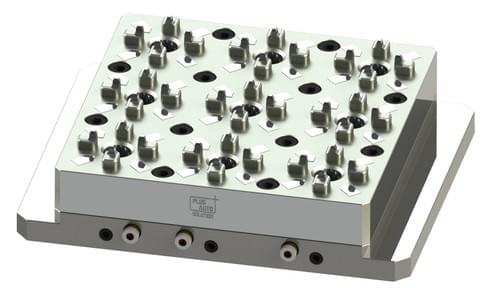

The PA-10003K 9-in-1 High-Density Pneumatic Chuck represents the pinnacle of manufacturing efficiency for small part production. With nine independent workholding stations intelligently arranged in a compact footprint, this innovative solution enables complete processing of an entire batch in a single machine cycle – dramatically reducing handling time and maximizing throughput.
Advanced Features & Capabilities:
- •
9-Station Simultaneous Processing: Machine nine identical or similar small parts complete in one automated cycle, eliminating individual handling and significantly increasing production capacity
- •
Intelligent Zoning Control: Three separate switches allow flexible control of three chuck groups (3+3+3), enabling batch processing of different components or family-based machining strategies
- •
Space-Optimized Design: Nine workholding stations integrated into a compact 300×240×77.5mm footprint, maximizing table utilization on smaller EDM and milling machines
- •
Maintenance-Free Operation: 6 Bar integrated air cleaning automatically maintains precision surfaces, while Nippon Stainless Steel construction (57-60 HRC) ensures long-term accuracy
- •
EROWA-Compatible Performance: Designed to match the precision and reliability standards of premium workholding systems at a fraction of the cost
Technical Specifications:
- •
Model: PA-10003K
- •
Workholding Stations: 9 independent chucks
- •
Overall Dimensions: 300 × 240 × 77.5 mm
- •
Clamping Force: 6,000 N per station
- •
Control System: 3 switches (controlling 3 chucks each)
- •
Air Supply: 6 Bar with integrated cleaning function
- •
Material: Nippon Stainless Steel, 57-60 HRC
- •
Repeat Accuracy: <0.002mm
Batch Processing Applications:
- •
Medical implants and instrument components
- •
Electronics connectors and micro-components
- •
Watch and jewelry manufacturing
- •
Aerospace miniature parts
- •
High-volume electrode production
- •
Micro-milling applications
Comparative Advantage:
Configuration | Traditional Separate Chucks | PA-10003K Solution |
|---|---|---|
Workpieces per Setup | 1-2 pieces | 9 pieces simultaneously |
Machine Cycle Efficiency | Multiple individual cycles | Single complete cycle |
Floor-to-Floor Time | Extended handling time | Minimized handling |
Operator Involvement | Frequent loading/unloading | Batch loading |
