Ultimate High-Density Workholding: Machine Six Parts in One Cycle​

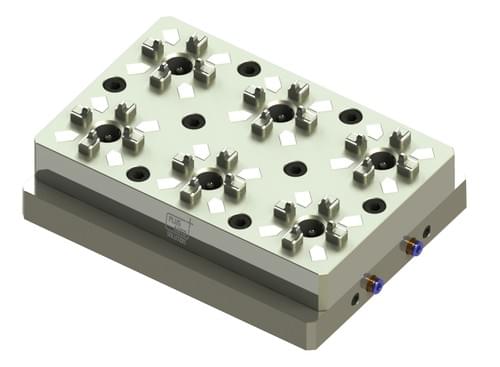

The ​PA-10002K 6-in-1 Tiny Pneumatic Chuck​ represents the pinnacle of space-efficient manufacturing technology. Building on our 4-in-1 design, this innovative solution enables you to hold and machine ​six separate workpieces simultaneously​ in a compact 260x200mm footprint - achieving unprecedented productivity for small part manufacturing.

​Key Advantages vs. Multiple EROWA Units:​​

• ​⚡ Complete 6-Part Program Cycles:​​ Machine an entire batch of six small parts in a single automated program cycle, dramatically reducing setup time and increasing throughput.

• ​📐 Maximum Density Workholding:​​ Six independent chucks arranged in a space-saving configuration that maximizes workspace utilization on compact EDM and CNC machines.

• ​🎛️ Intelligent Group Control:​​ Two switches conveniently control three chucks each (six total), providing flexible operation for different batch sizes or workpiece types.

• ​🧼 Integrated 6 Bar Air Cleaning:​​ All six chucks automatically clean during operation, maintaining precision and preventing debris accumulation.

• ​🛡️ Premium Nippon Stainless Steel:​​ CNC-machined to 57-60 HRC hardness ensuring long-term accuracy and durability in precision applications.

​Technical Specifications:​​

• ​Model:​​ PA-10002K

• ​Type:​​ 6-in-1 High-Density Pneumatic Chuck

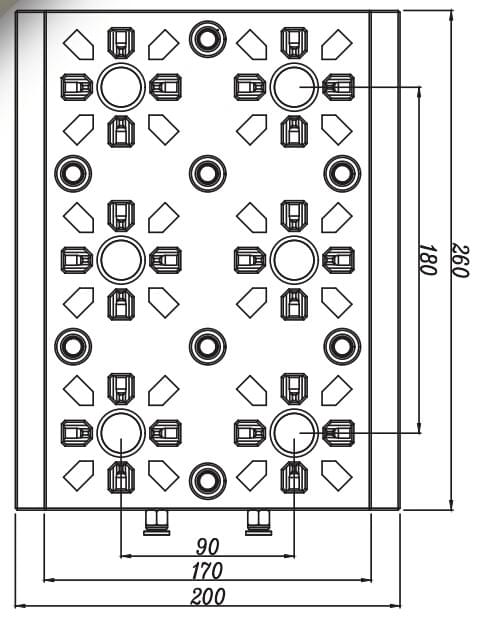

• ​Overall Size:​​ 260 x 200 x 77.5 mm

• ​Clamping Force (per chuck):​​ 6,000 N

• ​Air Pressure:​​ 6 Bar (with Air Cleaning Function)

• ​Control System:​​ 2 Switches (controlling 3 chucks each)

• ​Material:​​ Nippon Stainless Steel

• ​Hardness:​​ 57-60 HRC

​Space Efficiency Comparison:​​

​Perfect For:​​

• High-volume production of small EDM electrodes

• Medical component manufacturing (implants, instruments)

• Micro-milling of connector parts and micro-components

• Electronics industry precision parts

• Research institutions and prototype development
