PA-10001K 4-in-1 Tiny Pneumatic Chuck | Space-Saving EROWA ER

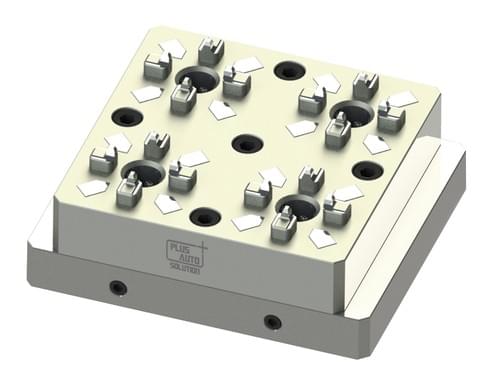

The PA-10001K 4-in-1 Tiny Pneumatic Chuck solves a critical challenge in compact manufacturing: how to maximize productivity when workspace is limited. While there's no direct EROWA equivalent, this innovative system is designed specifically to replace configurations requiring four separate EROWA ER-035519 ITS Chuck 100 P units, but in a dramatically smaller footprint.
Key Advantages vs. Multiple EROWA ER-035519 Units:
- •
📐 68% Space Reduction: One compact unit (200x170x77.5mm) replaces four individual chucks, freeing up precious workspace on small EDM machines and compact CNC workstations.
- •
⚡ Simplified Control: Operate all four chucks simultaneously with just one switch instead of managing multiple control points. Streamline your workflow and reduce operator complexity.
- •
🧼 Integrated 6 Bar Air Cleaning: All four chucks benefit from automatic cleaning during operation, protecting precision surfaces from chips and coolant.
- •
🛡️ Premium Precision Construction: CNC-machined from Nippon Stainless Steel (57-60 HRC) ensuring durability and maintained accuracy in precision applications.
Ideal For:
Perfect for machining smaller, more delicate components where extreme heavy-force machining isn't required:
- •
Small, intricate EDM electrodes
- •
Precision medical components
- •
Micro-milling applications
- •
Compact 5-axis machining of small parts
- •
Research and development prototyping
Technical Comparison:
Scenario | Using EROWA ER-035519 | Using Our PA-10001K |
|---|---|---|
Units Needed | 4 Separate Chucks | 1 Integrated Unit |
Approx. Space | ~4 x (102x102mm) = 41,616mm² | 200x170mm = 34,000mm² |
Control Points | 4 | 1 |
Clamping Force | 6,000 N per chuck | 6,000 N per chuck |
Best For | Heavy, individual workholding | High-density, small part machining |
Specifications:
- •
Model: PA-10001K
- •
Type: 4-in-1 Tiny Pneumatic Chuck
- •
Overall Size: 200 x 170 x 77.5 mm
- •
Clamping Force (per chuck): 6,000 N
- •
Air Pressure: 6 Bar (with Air Cleaning Function)
- •
Material: Nippon Stainless Steel
- •
Hardness: 57 - 60 HRC
- •
Control: 4 Chucks Controlled by 1 Switch
