PA-21032V-TR – Macro-Style Manual Chuck (80×80mm, 6000N Clamping Force) – Vertical/Horizontal Mounti

Precision manual chuck for Macro-style automation systems. Features two precision-ground faces for vertical or horizontal mounting on machine tables. Delivers 6000N clamping force, 4×90° fixed index positions, and integrated flushing duct. Manufactured from high-grade Japanese stainless steel, hardened to 57–60 HRC for exceptional durability.

PA-21031V-TR – Macro-Style Manual Chuck (Φ75mm, 6000N Clamping Force) – Hardened Stainless Steel

Precision manual chuck for Macro-style automation systems. Designed for mounting on machine spindles or fixtures. Features 6000N clamping force, 4×90° fixed index positions, and integrated flushing connection. Manufactured from high-grade Japanese stainless steel, hardened to 57–60 HRC for exceptional durability.

PA-21012V-TR – Macro-Style ER32 Collet Holder (Precision Electrode Holder) – Stainless Steel

Precision ER32 collet holder for Macro-style automation systems. Designed for clamping electrodes or cutting tools with high concentricity. Features integrated flushing duct for EDM applications. Manufactured from hardened stainless steel (HRC 48–52). Includes Φ12 collet. Achieves ±0.005mm concentricity after assembly.

PA-21009V-TR – Macro-Style Checking Pin / Control Rod (Precision Mandrel)

Precision checking pin (control rod / mandrel) for Macro-style chucks and automation systems. Used for setting, verifying, and calibrating chuck accuracy. Features precision-ground reference surfaces with ±0.005mm parallelism tolerance. Made from hardened stainless steel (HRC 48–52) for durability and long-term reliability.

PA-21008V-TR – Macro-Style Parallel Gauging Pin / Control Ruler – High Precision

Precision parallel gauging pin (control ruler) for Macro-style chucks and automation systems. Used for setting angular positions and centering. Features precision-ground long-edge reference surfaces with ±0.002mm parallelism tolerance. Made from hardened stainless steel (HRC 48–52). A cost-effective alternative without compromising accuracy.

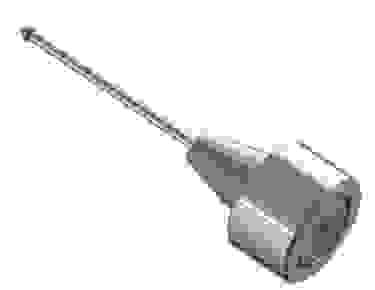

PA-21007V-TR – Macro-Style Spring Type Centering Sensor (Universal Probe) – Stainless Steel

Precision spring type centering sensor (universal measuring probe) for Macro-style automation systems. Features a Renishaw-style measuring head with ±10° deflection in X/Y axes and ±3mm in Z axis. Ideal for complex measurement cycles on CNC machines and EDM. Made from stainless steel for durability.

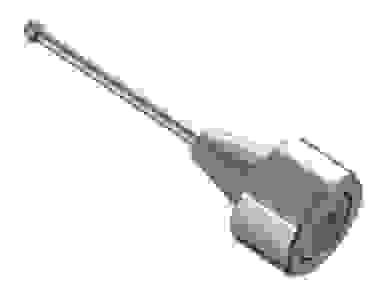

PA-21006V-TR – Macro-Style Centering Sensor / Measuring Probe (54×54mm Base)

Precision centering sensor (measuring probe) for Macro-style automation systems. Designed for machine tool measurement cycles to locate workpieces or electrodes. Features a stiff probe with Ø3mm measuring ball and 54×54mm reference base. Made from stainless steel for durability.

PA-21004V-TR – Macro-Style Automatic Spigot (Long Type) with Flushing Hole – Stainless Steel

Precision-ground automatic spigot (drawbar) for Macro-style pneumatic or automatic clamping systems. Designed to secure centering plates or pallets into automatic chucks. Made from hardened stainless steel (HRC 48–52) for durability. Includes integrated Ø7mm flushing hole for coolant or EDM fluid passage.

PA-21003V-TR – Macro-Style Manual Spigot (Short Type) with Flushing Hole – Stainless Steel

Precision-ground manual spigot (drawbar) for Macro-style clamping systems. Designed to secure centering plates or pallets into manual chucks. Made from hardened stainless steel (HRC 48–52) for durability. Includes integrated Ø7mm flushing hole for coolant or EDM fluid passage.

PA-21002V-TR – 70×70mm Macro-Style Centering Plate (Stainless Steel, Hardened)

Precision-ground centering plate for Macro-style reference systems with 70×70mm interface. Ideal for mounting larger electrodes or workpieces. Made from hardened stainless steel (HRC 40–44) for durability and long service life.

PA-21001V-TR – 54×54mm Macro-Style Centering Plate (Stainless Steel, Hardened)

Precision-ground centering plate for Macro-style reference systems. Designed for mounting electrodes or workpieces onto compatible chucks. Made from hardened stainless steel (HRC 40–44) for wear resistance and long service life.
